Standard Compaction Test (ASTM Version)

Name: Standard Compaction Test (ASTM Version)
Brand: SUBITEK
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Standard Compaction Test (ASTM Version) Specification

Automation Grade
Semi-automatic

Interface Type
Manual push button/lever

Features
Heavy duty construction, corrosion resistant, ASTM compliant

Equipment Type
Soil Testing Apparatus

Mounting Type
Table/Floor Mount

Accuracy
±1% energy per blow

Display Type
Analog scale/manual reading

Temperature
10°C to 40°C (operation)

Test Range
Standard Proctor Compaction Range

Operating Voltage
230 V AC

Application
Determination of optimum moisture content for soil

Humidity
Less than 80% RH (operation)

Power Supply
230 V AC, 50 Hz

Number of Specimens
Single specimen per test

Specimen Size
4 inch (101.6 mm) diameter; 116 mm height

Response Time
Immediate (mechanical action)

Frequency
50 Hz

Max Height
Approx. 750 mm

Measuring Range
Standard Proctor (ASTM D698)

Usage
Soil Compaction Testing

Capacity
60,000 to 100,000 ft-lb (energy per ft³)

Machine Weight
Approx. 40 kg

Test Speed
30 blows per minute (standard)

Test Width
Standard ASTM Mold Diameter: 101.6 mm (4 inch)

Test Stroke
457 mm (Drop Height 18 inch)

Control Mode
Manual/Automatic

Mold Volume
944 cm³

Hammer Weight
2.5 kg (ASTM Standard)

Material
Mild Steel / Stainless Steel Parts

Accessories Included
Steel Rammer, Measure, Collar, Baseplate, Tamper

Standards Followed
ASTM D698 / AASHTO T99

Packing Type
Export Worthy Wooden Box

Finish
Powder coated / Chrome plated

Safety Features
Mechanical locks and guards for operator safety

Standard Compaction Test (ASTM Version) Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Africa, Asia

Main Domestic Market
Mizoram, Bihar, Chandigarh, Daman and Diu, Goa, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, All India, North India, Meghalaya, Rajasthan, Sikkim, Kerala, Lakshadweep, Manipur, Andhra Pradesh, Tamil Nadu, West Bengal, South India, Central India, West India, East India, Gujarat, Karnataka, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, Telangana

About Standard Compaction Test (ASTM Version)

Specification:

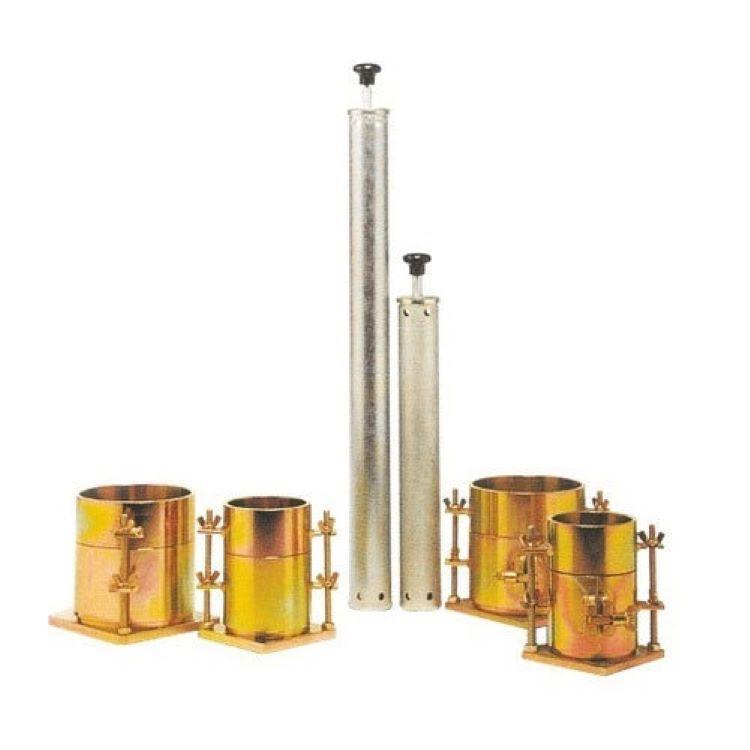

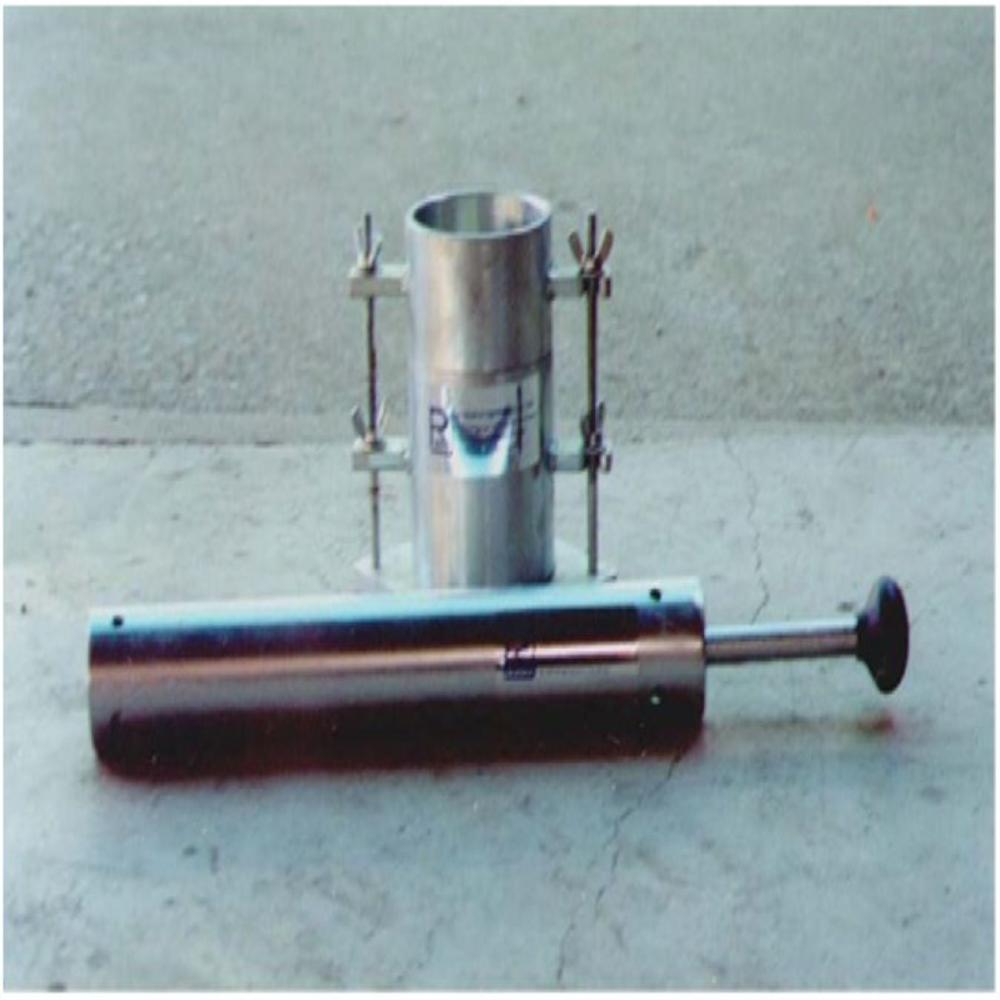

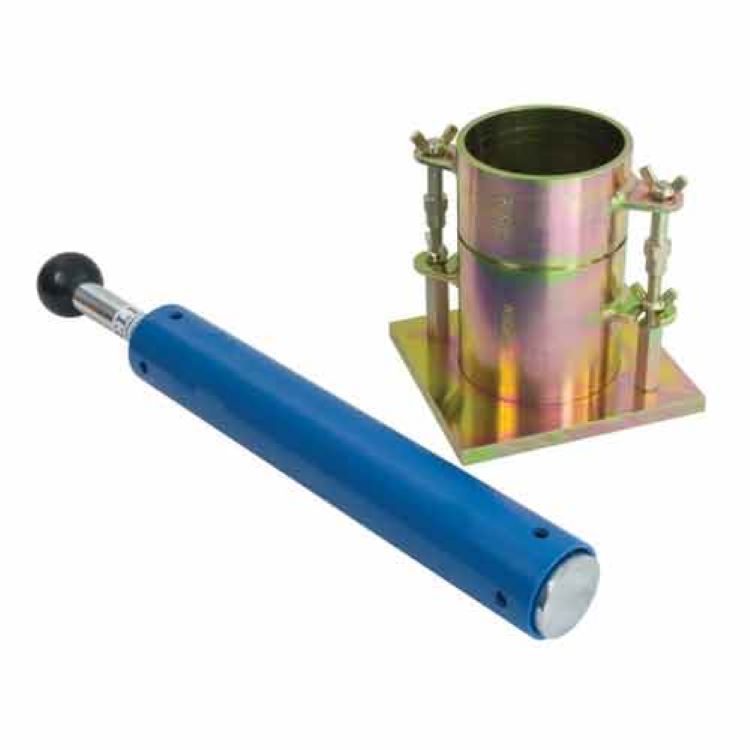

The apparatus consists one each of compaction mould steel, 101.6mm I.D. x 116.4mm height x 944 cc. volume, complete with collar and base plate
Compaction Rammer is 2.5 kgs. in weight x 12 controlled fall. Face of the rammer is 2

Precision Soil Compaction Testing

Utilizing ASTM D698 standards, this apparatus delivers reliable results for construction and geotechnical applications. Its heavy-duty design and accurate manual readings facilitate dependable moisture content analysis, which is critical for soil preparation and stability evaluation.

Robust Construction and Safety Features

Built from mild or stainless steel, the device offers longevity and protection against corrosion. Operator safety is prioritized via mechanical locks and guards, ensuring secure and confident usage in various laboratory environments and field settings.

Ready-to-Use with Comprehensive Accessories

Every unit arrives with essential accessories like steel rammer, measure, tamper, and baseplate, all packed in a sturdy wooden box for secure transport. The apparatus is simple to operate and designed for efficiency, making it suitable for professionals in soil testing laboratories across India.

FAQ's of Standard Compaction Test (ASTM Version):

Q: How does the Standard Compaction Test (ASTM Version) determine the optimum moisture content of soil?

A: This apparatus assesses the soil's optimal moisture content by compacting a single specimen in the provided mold using a 2.5 kg hammer, as specified in ASTM D698. The process measures the soil's density and moisture, helping engineers establish necessary compaction parameters for site preparation.

Q: What are the included accessories for the Standard Compaction Test apparatus?

A: The equipment comes with a steel rammer, measuring tool, collar, baseplate, tamper, and all components needed for conducting tests as per ASTM/AASHTO standards. These items enhance usability and ensure precise compaction and measurement.

Q: When is it recommended to use the Standard Compaction Test apparatus in soil analysis?

A: It is recommended during initial soil investigations for construction projects, roadworks, and earthworks, where determining the optimum moisture content is necessary for achieving the desired soil compaction and stability.

Q: Where can this soil compaction testing apparatus be installed or mounted?

A: The unit accommodates both table and floor mounting, making it suitable for use in laboratory environments, educational facilities, and on-site field laboratories.

Q: What safety mechanisms are integrated in the equipment?

A: The compaction test apparatus includes mechanical locks and guards for operator safety, which prevent accidents during testing and allow for secure operation even in busy laboratory settings.

Q: How is the testing process controlled and what interface options are available?

A: Users can operate the machine via a manual push button or lever, with a control mode offering manual or automatic options. This interface ensures straightforward operation and consistent test parameters.

Q: What benefits does this apparatus offer for soil compaction testing?

A: It provides ASTM-compliant, accurate measurement of soil compaction, immediate mechanical readings, and robust, corrosion-resistant construction, ensuring longevity and reliability for Indian dealers, manufacturers, exporters, and testing professionals.
