Solvent Recovery Unit

Get a Price/Quote

MOQ : 1 Piece

Solvent Recovery Unit Specification

Motor Power
2 HP

Surface
Polished

Product Type
Solvent Recovery Unit

General Use
Recovery and recycling of organic solvents in chemical industries

Material
Stainless Steel

Type
Automatic

Capacity
10 - 100 Liters/Batch

Weight (kg)
Approx. 150 - 350 kg

Computerized
No

Automatic
Yes

Control System
PLC-based or electrical panel

Cooling System
Water-cooled condenser

Method
Distillation

Voltage
380/415 V, 50/60 Hz

Dimension (L*W*H)
1200 x 800 x 1800 mm (typical)

Feature
Easy operation, environment-friendly, high recovery rate

Color
Metallic / Silver

Distillation Temperature Range
40°C - 180°C

Max. Working Pressure
Atmospheric

Residue Discharge
Easy cleaning with residue drawer

Recovery Efficiency
Up to 99%

Noise Level
Below 70 dB

Safety Features
Over-temperature protection, Pressure release valve

Discharge Mode
Manual/Automatic

Power Consumption
2.5 - 5 kW

Heating Source
Electric heater

Application Area
Pharmaceutical, Paint, Ink, Chemical, Electronics Industries

Solvent Recovery Unit Trade Information

Minimum Order Quantity
1 Piece

FOB Port
COIMBATORE

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
COTTON BOX

Main Export Market(s)
Asia, Africa

Main Domestic Market
Tripura, Uttarakhand, All India, South India, Central India, West India, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Pondicherry, Uttar Pradesh, West Bengal, North India, East India, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Delhi

About Solvent Recovery Unit

Specification:

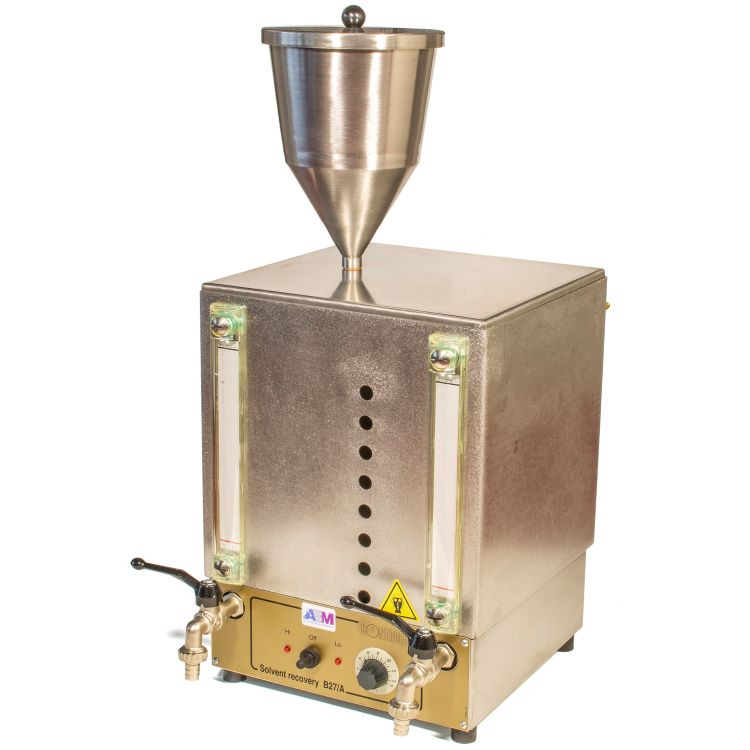

On-flammable solvent liquids used for the binder extraction test can be successfully recovered using the solvent recovery unit. The recovery unit consists of two stainless steel chambers, one for the dirty used solvent and the other for the cleaned recovered solvent. Solvent in the left-hand side chamber is distilled by an electrical heater and then passes through a water cooling system and drops into the second chamber ready for re-use. A temperature switch automatically stops the heating elements when the recovery process is completed. The unit is supplied complete with 10 m plastic tubing, tube clamps, sieve insert 0.6 mm opening and one lid.

The solvent recovery unit is supplied complete with:

Plastic tubing, 10 m
Sieve insert, 0.6 mm
Tube clamps
Lid

Specifications:
Dimensions : 400 x 320 x 650 mm
Weight (approx.) : 17 Kg
Power : 1200 W
Max. Tempature : 150C

High Efficiency and Safety Standards

Engineered to maximize solvent recovery with up to 99% efficiency, this unit incorporates essential safety features such as over-temperature protection and a pressure release valve. Its atmospheric pressure operation and PLC-based control minimize risk. This ensures reliable performance and peace of mind during continuous industrial use.

Versatile Application Across Industries

Designed for use in pharmaceutical, paint, ink, chemical, and electronics manufacturing, this solvent recovery system is adaptable for a range of production environments in India. Its easy-to-clean residue discharge system and stainless-steel construction make it ideal for stringent industrial standards.

FAQ's of Solvent Recovery Unit:

Q: How does the Solvent Recovery Unit achieve high recovery efficiency?

A: The unit utilizes a distillation method, powered by an electric heater, to separate and recover solvents. Its water-cooled condenser rapidly condenses vapors, and precise temperature control ensures efficient recovery-reaching up to 99% efficiency for most organic solvents.

Q: What solvents can this unit recover and where is it typically used?

A: Primarily tailored for organic solvents, the unit finds widespread application in pharmaceutical, paint, ink, chemical, and electronics industries, supporting both small and large batch operations with capacities from 10 to 100 liters per batch.

Q: When should residue be removed from the system and how is it done?

A: Residue should be removed after each completed cycle or when indicated by the control system. The unit features a residue drawer, allowing for easy cleaning and safe disposal of non-volatile waste without dismantling the equipment.

Q: What are the main benefits of using this solvent recovery unit in industrial operations?

A: Key advantages include significant cost savings from solvent recycling, reduced environmental impact, high operational safety, energy efficiency, minimal noise generation, and compliance with industry safety and emission standards.

Q: How does the safety system of the unit operate during the recovery process?

A: The system monitors temperature and pressure in real-time, activating over-temperature protection and the pressure release valve when required, thereby preventing hazards while ensuring continuous, safe operation.

Q: What power requirements and control options does the unit support?

A: Operating at 380/415 V and 50/60 Hz with power consumption between 2.5 - 5 kW, the unit features a PLC or electrical panel for automatic or manual operation, providing flexible integration into various industrial setups.
