Sand Pouring Cylinder - IS

Name: Sand Pouring Cylinder - IS
Brand: SUBITEK
Price: 20000.0 INR
Availability: InStock

Price 20000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Sand Pouring Cylinder - IS Specification

Application
Determining density of soil/sand in-situ

Measuring Range
Fulfills IS 2720 requirements

Accuracy
As per IS standards

Automation Grade
Manual

Gas Pressure
Ambient

Port Size
Cylinder Port Size: 5 cm

Equipment Type
Laboratory, Field Cylinder

Mounting Type
Portable/Hand Held

Humidity
Room Conditions

Features
Simple assembly, corrosion resistant, IS marked

Display Type
No display (visual inspection/manual)

Specimen Size
As per IS: 2720 standards

Temperature
Ambient

Test Range
For Determination of Density of Sand (IS 2720 Part 28)

Max Height
Approx. 27 cm

Hardness
Standard Laboratory Metal

Response Time
Immediate

Number of Specimens
Single Specimen per Test

Usage
Soil Testing Field/Laboratory

Capacity
1 Litre (Approx)

Machine Weight
Approx. 2.5 kg

Test Speed
Manual Operation

Control Mode
Manual

Sand Weight Capacity
1 kg

Accessories Included
Tray, calibrating container, sand container

Markings
Graduated for measurement

Calibration
Supplied with calibration certificate on request

Usage Standard
Conforms to Indian IS Standard

Construction Material
Mild steel/Brass

Compliance
IS 2720 Part 28:1974

Finish
Polished, rust resistant

Cylinder Diameter
About 10 cm

Handle Type
Fixed steel/brass handle

Sand Pouring Cylinder - IS Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cotton box

Main Export Market(s)
Africa, Asia

Main Domestic Market
West Bengal, All India, East India, Gujarat, South India, Central India, West India, North India, Karnataka, Kerala, Lakshadweep, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana

About Sand Pouring Cylinder - IS

Specification:

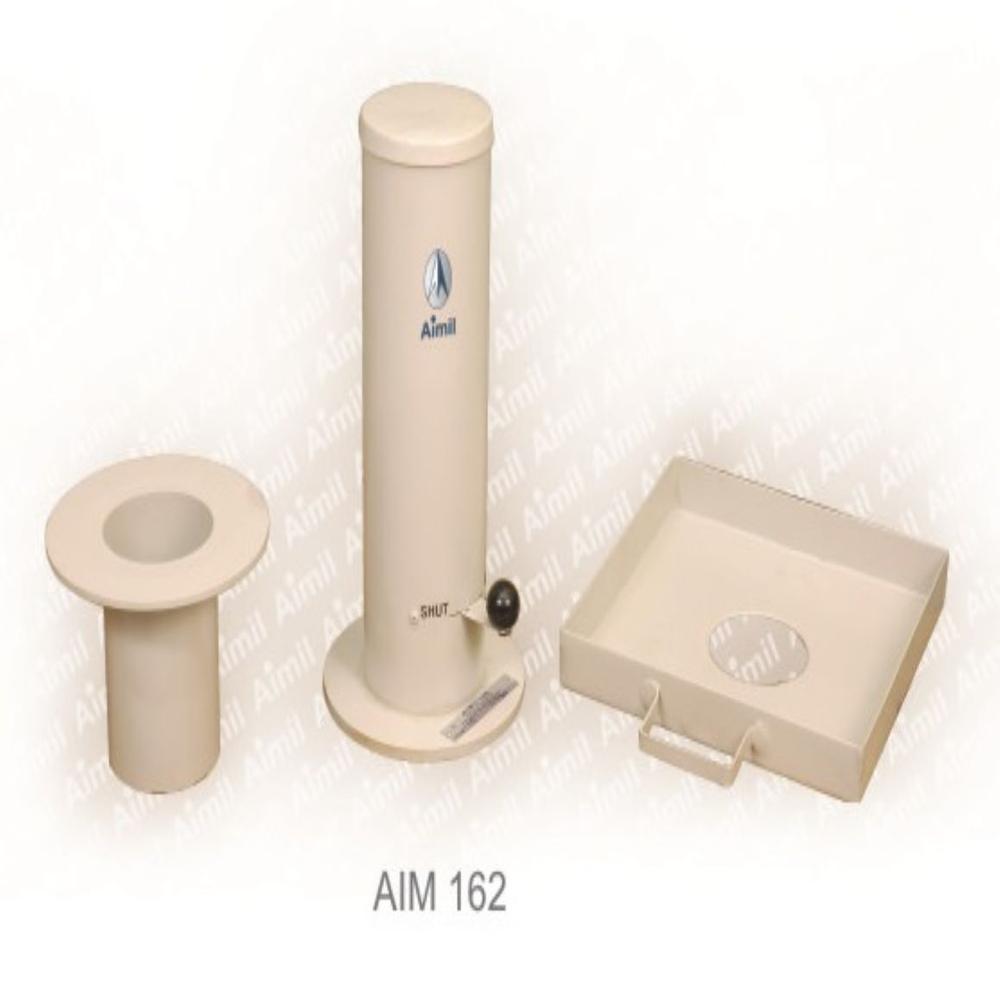

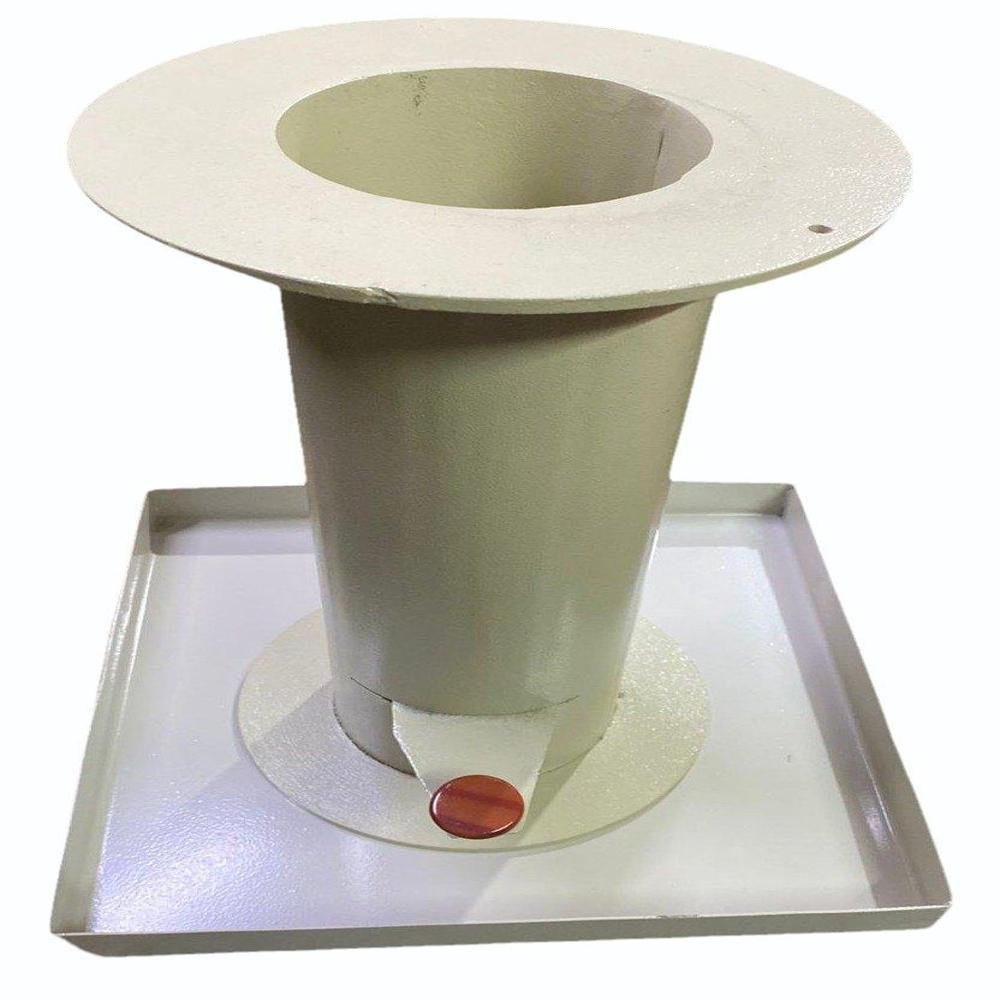

This apparatus is used for the in place determination of the dry density of compact, line and medium grained soils and for layers not exceeding 500mm thickness. The complete apparatus consists one each of Small sand pouring cylinder, 3 litre capacity fitted with conical funnel and shutter. Cylinder
calibrating container, internal dia 100mm and 150mm height.
Accessories:
Metal tray, 300mm square and 40mm deep with hole.
Note:
Sand pouring cylinder Medium (150mm) and Large (200mm) as per IS 2720 (P-XXVIII) also available.

Reliable and Accurate Soil Density Measurement

The Sand Pouring Cylinder - IS is calibrated for precise determination of soil and sand density, making it a trusted tool in geotechnical field and laboratory testing. With clear graduated markings, the instrument supports swift and accurate visual readings, all while ensuring compliance with IS 2720 standards for reliable and consistent results.

Robust Construction for Long-Term Use

Constructed from heavy-duty mild steel or brass and finished with a polished, corrosion-resistant surface, this cylinder is built to endure frequent handling in harsh field and laboratory environments. The fixed steel or brass handle adds convenience and safety during transportation and operation, promoting longevity and reliability.

Ease of Use and Portability

Designed for manual operation and immediate response, the sand pouring cylinder offers straightforward assembly and hassle-free portability. Whether you are conducting soil tests on-site or in the lab, its compact form and intuitive accessory setup make soil density determination simple and efficient for users at any experience level.

FAQ's of Sand Pouring Cylinder - IS:

Q: How is the Sand Pouring Cylinder - IS used for determining the density of soil or sand in situ?

A: This cylinder is placed over a prepared hole in the soil, and the calibrated sand is poured into the hole using the equipment. The amount of sand required to fill the hole is measured and used to calculate the in-situ density, strictly following IS 2720 Part 28:1974 guidelines.

Q: What accessories are included with the Sand Pouring Cylinder - IS?

A: The equipment is supplied with a tray, calibrating container, and a sand container. These accessories help contain, measure, and pour sand precisely during soil density tests as per IS requirements.

Q: When should calibration be performed and is a calibration certificate provided?

A: Calibration should be checked periodically, especially before major testing projects or after prolonged storage. Calibration certificates are available on request, ensuring the accuracy and traceability of measurement results.

Q: Where can the Sand Pouring Cylinder - IS be used?

A: This instrument is designed for both laboratory and field applications. Its robust construction and portable design make it suitable for on-site soil density determination as well as controlled laboratory measurements.

Q: What advantages does manual operation offer for this sand pouring cylinder?

A: Manual operation allows for precise control over the testing process, immediate feedback, and eliminates reliance on power sources. This makes the device ideal for use in remote or varied environmental conditions.

Q: What is the benefit of the corrosion-resistant polished finish?

A: The polished, rust-resistant surface enhances the equipment's durability, ensuring that it performs reliably and maintains accuracy even when exposed to humid or harsh conditions common in fieldwork.

Q: How does the device ensure compliance with IS 2720 standards?

A: All aspects of the cylinder, from dimensional markings to measuring capacity and operating procedures, are manufactured and validated to match IS 2720 Part 28:1974 standards, guaranteeing standardized, recognized testing results.
