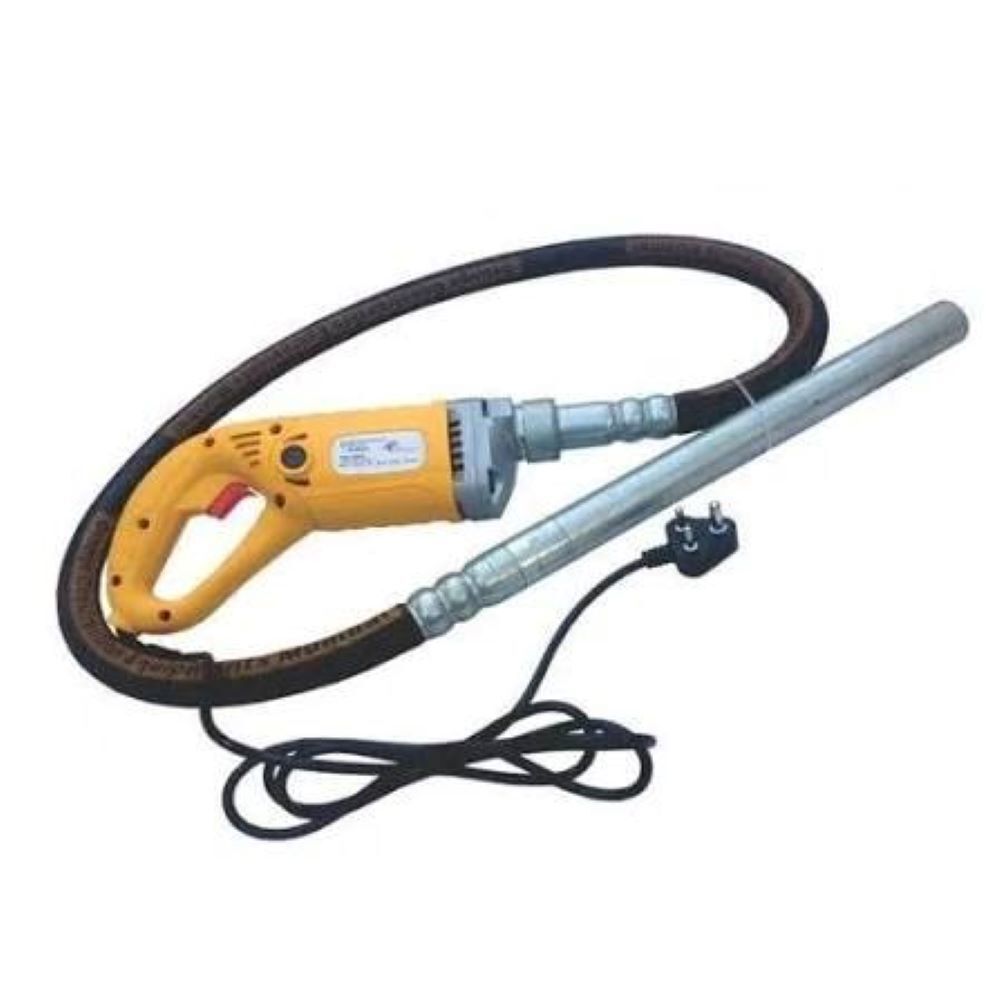

PORTABLE HANDY VIBRATORS

Name: PORTABLE HANDY VIBRATORS
Brand: SUBITEK
Price: 12000 INR
Availability: InStock

Price 12000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

PORTABLE HANDY VIBRATORS Specification

MAX TIP SIZE
35 mm - 40 mm

Motor Power
1 HP to 2 HP

Surface
Powder coated/painted metal

Rated Power
750W - 1500W

Application
Concrete construction, pillar and beam compacting

Product Type
Portable Handy Vibrator

General Use
For concrete compaction

Material
Aluminum Body, Steel Shaft and Needle

Type
Electric Concrete Vibrator

Capacity
Standard - For small to medium construction site

Weight (kg)
Approx. 6-8 kg

Computerized
No

Automatic
No

Control System
Handheld manual switch

Cooling System
Air cooled

Method
Vibration

Voltage
220-240 V, Single Phase

Dimension (L*W*H)
Body: approx. 400mm x 80mm x 120mm (excluding shaft and cable)

Feature
Lightweight, easy to carry, ergonomic design

Color
Yellow/Black

Protection Class
IP44

Handle Type
Ergonomic pistol-grip

Noise Level
Less than 85 dB

Cable Length
2 meters to 3 meters

Vibration Frequency
12000 - 16000 VPM (Vibrations Per Minute)

Needle Length
1 meter to 1.5 meter

Shaft Material
Steel Reinforced Rubber

Maintenance
Low maintenance design

Usage
Ready to use, plug and play

Plug Type
Standard 3-pin plug

PORTABLE HANDY VIBRATORS About

eedle Diameter	35 mm
Type	Electric
Power Source	Electric Motor
Flexible Shaft Length	1 m
Vibration Frequency	3000 rpm
Application	Concrete
Usage	Pile
Usage	Foundation
Usage	Slab
Usage	Wall
Usage	Beam
Usage	Column
Power	Electric
Material	Mild Steel
Phase Type	Single Phase
Diameter	35mm
Weight	1 kg
Country of Origin	Made in India

Product Attributes:

50 Hz frequency
4500 rpm no-load speed
1200 Watt power motor
Sturdy motor

Benefits:

Highly efficient
Low weight
Portable
Ease of use
Maximum overload capacity
Durable
Fatigue-free use

Efficient Concrete Compaction

Designed for fast and uniform compaction, the portable handy vibrator ensures efficient removal of air bubbles and voids in concrete. Its high vibration frequency results in a denser, stronger concrete structure. The lightweight aluminum body lets workers use it with minimal fatigue over prolonged periods, making it suitable for both pillars and beams.

User-Friendly and Ready to Use

This vibrating unit features an ergonomic pistol-grip handle and a plug-and-play setup. Simply connect to a standard 3-pin power outlet and you're ready to operate. The simple handheld manual switch and low-maintenance design minimize downtime on site.

Built for Indian Construction Sites

Engineered with an IP44 protected motor, heavy-duty steel shaft, and reinforced components, this tool is durable for harsh construction environments. The cable and shaft length allow for flexibility on small to medium jobs, making it suitable for contractors, dealers, and fabricators across India.

FAQ's of PORTABLE HANDY VIBRATORS:

Q: How does the portable handy vibrator improve the quality of concrete?

A: By delivering 12,000 to 16,000 vibrations per minute, the vibrator efficiently removes trapped air and increases concrete density. This process ensures a stronger and more durable finished structure, reducing the risk of weak spots or cracks.

Q: What types of construction tasks is this vibrator suitable for?

A: This electric concrete vibrator is ideal for compacting concrete in pillars, beams, floors, and small to medium construction projects. It is widely used by contractors, builders, fabricators, and suppliers throughout India.

Q: When should I use a portable concrete vibrator during construction?

A: The vibrator should be used immediately after pouring wet concrete into the formwork. Timely compaction helps prevent segregation and achieves a smooth finish before the concrete begins to set.

Q: Where can I use this electric vibrator safely?

A: The IP44 protection rating allows safe usage in typical construction settings with exposure to dust and water splashes. However, avoid direct submersion and always operate within the voltage range of 220-240V single-phase power.

Q: What is the maintenance process for this vibrator?

A: Thanks to its low-maintenance design, only periodic checks of the cable, shaft, and air vents are needed. Ensure the equipment is unplugged before cleaning and store it in a dry place after use.

Q: How easy is it to transport and handle this vibrator on site?

A: Weighing approximately 6-8 kg and featuring a comfortable pistol-grip handle, the unit is lightweight and easy to carry across sites. The plug-and-play function allows for quick setup and transport between locations.

Q: What are the key benefits of using this device compared to traditional compaction methods?

A: Using this portable handy vibrator ensures faster, more consistent compaction than manual methods. It saves time, reduces labor effort, and results in higher strength concrete with fewer defects.
