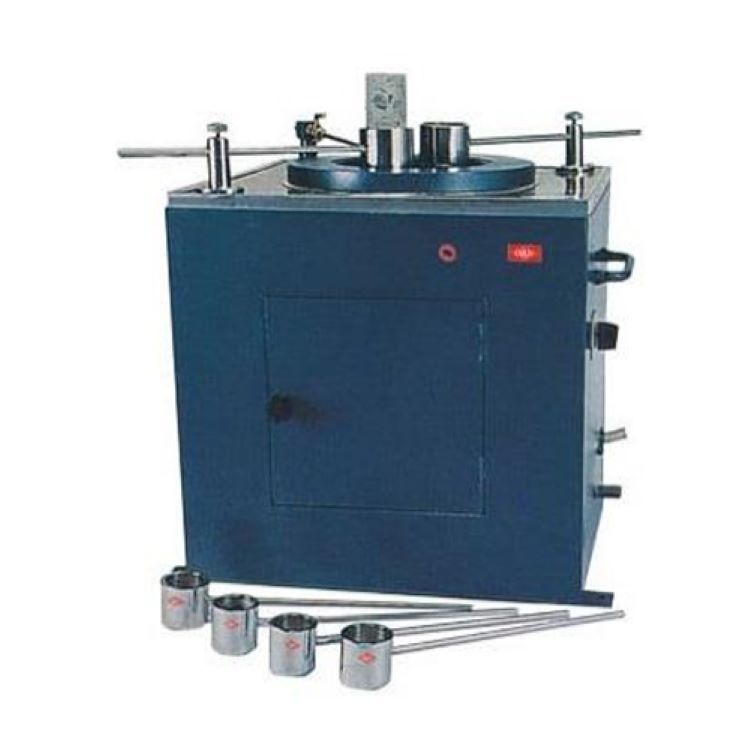

Polishing And Lapping Machine

Name: Polishing And Lapping Machine
Brand: SUBITEK
Price: 59999.0 INR
Availability: InStock

Price 59999.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Polishing And Lapping Machine Specification

Accuracy
0.02 mm

Temperature Resistance
Designed for room temperature operation

Shape
Rectangular

Features
Sturdy design, low vibration, high precision lapping, easy specimen change

Speed Range
50 600 RPM (variable)

Display Type
LED

Power Supply
Single Phase

Control Type
Digital Speed Control

Type
Polishing and Lapping Machine

Dimension (L*W*H)
550 mm x 450 mm x 350 mm

Equipment Type
Laboratory Equipment

Equipment Materials
Heavy Duty Cast Iron / Stainless Steel

Power
0.5 HP

Voltage
220 V AC

Material
Cast Iron / Stainless Steel

Application
Metallurgical specimen grinding, polishing, lapping

Capacity (Ltr)
5 Liters

Timer
Up to 60 Minutes

Accessory Included
Polishing cloth, sample holder

Finish Type
Powder coated

Disc Diameter
200 mm

Plate Material
Stainless Steel

Motor Type
Induction Motor

Noise Level
<50 dB

Coolant Provision
Yes, splash guard included

Operation Mode
Manual / Semi-Automatic

Safety Features
Overload protection, non-slip feet

Weight
Approx. 45 Kg

Polishing And Lapping Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
coimbatore

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Sample Available
No

Packaging Details
cottonbox

Main Export Market(s)
Asia, Africa

Main Domestic Market
Karnataka, Kerala, Lakshadweep, West India, North India, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal, Mizoram, Meghalaya, All India, South India, Central India, East India, Gujarat, Arunachal Pradesh, Chhattisgarh, Haryana, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana

About Polishing And Lapping Machine

Specification:

This unit is provided with a 1 HP Single Phase, A.C. motor This bench mounted single spindle lapping machine is Ideally suited jar the final polishing of mounted rock or concrete specimens. Two sample holders of sample size ordered for are provided with each machine as standard supply Sample holders of other size can also be provided on request. This is a motor driven unit with 450/500 rpm. A swing-in tap, for continuous water supply during operation is also provided.
This unit is operated on Single Phase. 230 V A.C. motor.
ZI 6007-A Sample Holder for Ex size
ZI 6007-B Sample Holder for Ax size
ZI 6007-C Sample Holder for 38mm size
ZI 6007-D Sample Holder for Bx size
ZI 6007-E Sample Holder for Nx size

Compact table model
20 cm dia top and Adapter to hold polishing cloth or paste
Sample Holders to accommodate upto NX size Cores
Continuous water feed arrangement during operation

Precision and Versatility for Laboratory Needs

Engineered for meticulous sample preparation, this polishing and lapping machine includes a digital speed control for adjustable operation and delivers an accuracy of 0.02 mm. Its semi-automatic/manual modes cater to varying expertise and task requirements, making specimen processing seamless and reliable. The inclusion of a polishing cloth, sample holder, ample coolant tank, and splash guard ensures efficient, clean, and safe usage.

Sturdy Construction and Quiet Operation

Constructed from heavy-duty cast iron and stainless steel, the machine offers exceptional durability and stability. Noise levels are maintained below 50 dB, providing a comfortable working environment. Its compact, rectangular design and non-slip feet allow easy installation and safe operation even in bustling laboratory settings.

FAQ's of Polishing And Lapping Machine:

Q: How do I operate the Polishing And Lapping Machine safely?

A: Ensure the machine is set up on a stable surface using its non-slip feet, and connect it to a single-phase 220V AC power supply. Use the digital speed control to adjust the rotation from 50 to 600 RPM. Safety features such as overload protection, splash guard, and operator controls help prevent accidents during use.

Q: What is the maximum capacity and size of specimens that can be polished?

A: The machine features a 200 mm stainless steel polishing disc and a 5-liter coolant tank, suitable for processing a variety of metallurgical specimens. The sample holder accessory accommodates standard laboratory sample sizes for grinding, lapping, and polishing.

Q: When should the timer function be used?

A: Utilize the built-in timer, adjustable up to 60 minutes, to set precise polishing or lapping intervals. This ensures consistent, repeatable results, particularly for samples requiring strict process durations.

Q: Where can the Polishing And Lapping Machine be used?

A: This machine is ideal for laboratory environments, research institutes, and metallurgical testing facilities across India. Its construction and features suit both educational and industrial lab settings.

Q: What is the process for changing specimens between cycles?

A: The machine is designed for easy specimen change-simply stop the unit, remove the sample holder, and replace or mount the next specimen. The user-friendly design minimizes downtime between preparation cycles.

Q: How does the machine benefit my workflow or research?

A: Its high-precision output (0.02 mm accuracy), variable speed range, efficient coolant system, and safety features streamline sample preparation, boosting productivity and ensuring reliable, high-quality results for metallurgical analysis.
