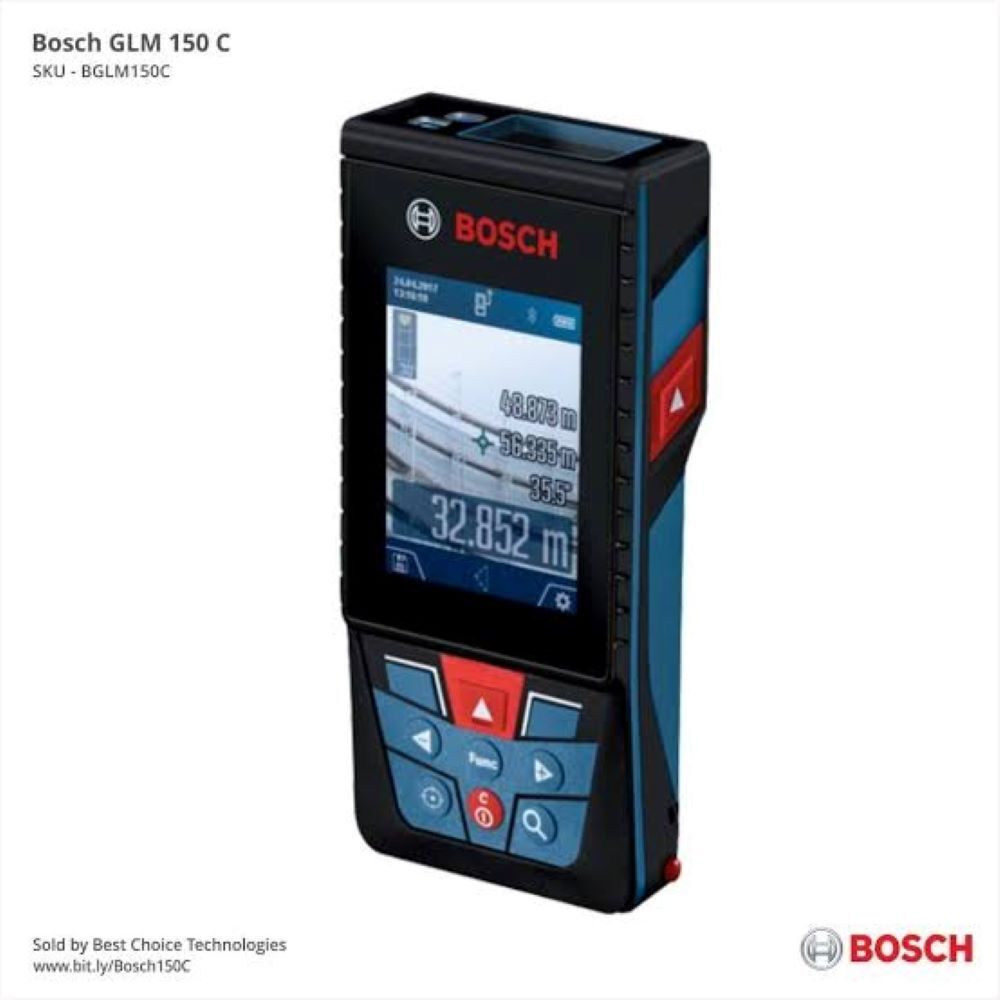

GLM 150 DISTANCE METER

Name: GLM 150 DISTANCE METER
Brand: SUBITEK
Price: 22000 INR
Availability: InStock

Price 22000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

GLM 150 DISTANCE METER Specification

Interface Type
Bluetooth Smart (App compatible)

Resolution
0.1 mm

Humidity
Up to 85% relative humidity

Temperature
Operating: -10C to +50C

Operating Voltage
3.0V (2 x 1.5V AA batteries)

Equipment Type
Laser Distance Meter

Response Time
Measurement typically in < 0.5 seconds

Test Range
0.05 - 150 meters

Features
Integrated tilt sensor, memory function, Bluetooth, area/volume calculation, IP54 protection, indirect measurement modes

Measuring Range
0.05 - 150 meters

Power Supply
2 x 1.5V LR6 (AA) batteries

Automation Grade
Semi-automatic

Max Height
150 meters measuring range

Mounting Type
Handheld

Accuracy
1.5 mm

Application
Distance measurement, area/volume measurement, indirect measurement

Frequency
Laser class 2, 635 nm, <1 mW

Display Type
Color display with backlight

Usage
Indoor/Outdoor measurement tasks

Machine Weight
Approximately 0.15 kg

Control Mode
Manual/Automatic Functions

IP Rating
IP54 (Dust and Splash Water Protection)

Data Transfer
Bluetooth Smart

Dimensions
120 x 66 x 29 mm

Battery Life
Up to 4,000 measurements

Laser Class
Class 2

Memory
Stores up to 50 measurements

Backlight
Yes

GLM 150 DISTANCE METER About

Precise targeting Thanks to the digital viewfinder with zoom function also for outdoor applications and long distance

Optimal readability Due to large 28 IPS colour display with extra robust cover glass

Fast collection and documentation of measured values thanks to Measuring Master App

Laser diode 650 nm 1 mW

Measurement range 008 15000

Precise and Versatile Measurements

Achieve highly accurate measurements across a wide variety of construction and renovation tasks with the GLM 150 Distance Meter. Its versatile modes-distance, area, volume, continuous, and indirect height-cater to multiple applications. The resolution of 0.1 mm ensures fine details are captured, and Bluetooth compatibility enhances workflow efficiency by enabling wireless measurement data transfer to the Bosch MeasureOn app.

Durability and User-Friendly Features

Built with an IP54-rated housing, the GLM 150 is resistant to dust and splash water, ensuring reliable operation even in challenging environments. The large, backlit color display provides excellent visibility, and the integrated memory stores up to 50 records. The device powers off automatically after 5 minutes of inactivity to conserve battery, and a handy tripod mount offers accuracy for long measurements.

FAQ's of GLM 150 DISTANCE METER:

Q: How does the GLM 150 Distance Meter transfer measurement data?

A: The GLM 150 features Bluetooth Smart connectivity, allowing seamless transfer of measurement data to the Bosch MeasureOn app, where you can organize, analyze, and share your results conveniently.

Q: What environments can I use the GLM 150 Laser Distance Meter in?

A: The device is designed for both indoor and outdoor use. Its IP54 protection safeguards it against dust and splashes, but range and visibility may be limited in very bright sunlight.

Q: What benefit does the integrated memory function offer?

A: The integrated memory can store up to 50 measurements, enabling users to keep a record of recent measurements for later reference, comparison, or data transfer without needing to re-measure.

Q: What is the process for measuring indirect heights with the GLM 150?

A: Indirect height measurement is performed using the built-in tilt sensor and Pythagorean functions. This allows you to measure heights that are not directly accessible, such as the elevation of a building or object.

Q: How long does the battery last, and what type should I use?

A: Powered by 2 x 1.5V LR6 (AA) batteries, the GLM 150 can complete up to 30,000 measurements per set, ensuring extended field operation before replacement is necessary.

Q: What are the key usage applications for this distance meter?

A: The GLM 150 is ideal for tasks including distance, area, and volume measurement, indirect height calculation, and continuous measurement in construction, architecture, and interior design applications.

Q: Can the GLM 150 be mounted on a tripod for precise measurements?

A: Yes, the device is equipped with a standard 1/4-inch tripod thread, allowing stable mounting for enhanced accuracy, particularly over long measuring distances.
