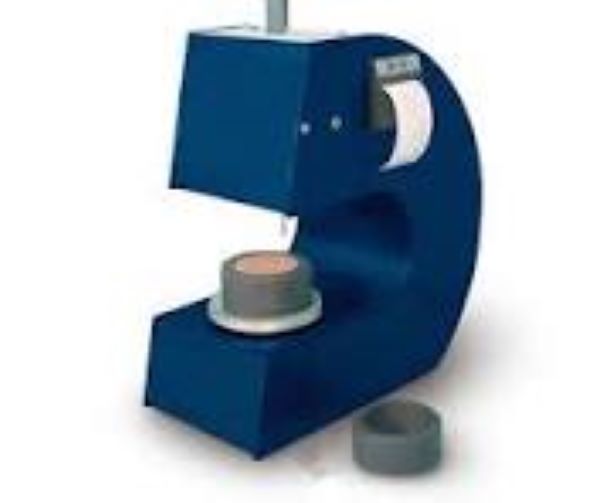

Automatic Computerized Vicat Recording Apparatus

Name: Automatic Computerized Vicat Recording Apparatus
Brand: SUBITEK
Price: 3000.0 INR
Availability: InStock

Price 3000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Automatic Computerized Vicat Recording Apparatus Specification

Measuring Range
0-100 mm penetration

Accuracy
±0.01 mm

Max Height
320 mm

Resolution
0.01 mm

Gas Pressure
No external gas required

Specimen Size
40 mm diameter x 60 mm height

Operating Voltage
220-240 VAC

Application
Cement, gypsum, and similar material setting time determination

Mounting Type
Table-top

Test Range
0-999 minutes (Vicat setting time)

Hardness
Industrial grade, robust construction

Temperature
Room temperature to 60°C

Automation Grade
Automatic

Features
Automatic recording, PC control, data logging, graphical results

Equipment Type
Computerized Vicat Recording Apparatus

Response Time
<1 second

Frequency
50Hz

Number of Specimens
Up to 6 specimens simultaneously

Port Size
Standard 10 mm feeding port

Humidity
Up to 90% RH, non-condensing

Display Type
Digital LCD and PC Interface

Interface Type
USB, RS232

Power Supply
230V AC, 50Hz

Usage
Laboratory, Quality Control

Capacity
6 Vicat moulds

Machine Weight
Approx. 25 kg

Test Speed
Controlled, programmable via software

Test Width
150 mm

Test Stroke
0-50 mm

Control Mode
Automatic, Computerized

Overload Protection
Yes

Materials of Construction
Stainless steel and powder-coated MS

Penetration Depth Measurement
Digital, auto-recorded

Memory
Up to 1000 test results storage

Penetration Needle Movement
Motorized, software-controlled

Software Compatibility
Windows XP/7/8/10 compatible

Safety Interlock
Automatic stop at max penetration

Power Consumption
<40W

Ambient Operating Conditions
15°C to 45°C, up to 85% RH

Calibration
Electronic zero calibration

Indenter Diameter
1 mm

Data Output
Printable and exportable to spreadsheet

Automatic Computerized Vicat Recording Apparatus Trade Information

Minimum Order Quantity
1 Piece

FOB Port
COIMBATORE

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Week

Sample Available
No

Packaging Details
COTTON BOX

Main Export Market(s)
Asia, Africa

Main Domestic Market
Karnataka, Kerala, Lakshadweep, Meghalaya, Manipur, Andhra Pradesh, All India, South India, Central India, West India, North India, East India, Gujarat, Mizoram, Goa, Bihar, Chandigarh, Daman and Diu, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

About Automatic Computerized Vicat Recording Apparatus

Specification:

The Vicatronic apparatus, that is designed and manufactured using the most recent and sophisticated technology, is used for the initial and final setting time determination of cements or mortar pastes.
The unit is manufactured with anticorrosion and tropicalised components to be used in places with humidity not below 90% and 20C. controlled temperature as required by EN Specifications.
The entire test is made in a fully automatic way and gives a very precise and repeatable result.
The results are printed on the incorporated printer and this eliminates the manual operations of installing and zeroing the paper graph on the drum.
The use of the appliance is extremely simplified by the guiding menu that is available in english, french, spanish, german, italian language.

Digital Precision With Automated Data Logging

The apparatus provides fully automatic measurement and recording of penetration depth with high-resolution digital sensors, yielding accuracy as fine as 0.01 mm. Data is logged automatically, offering printable and exportable records to facilitate detailed quality analysis and long-term archiving. This advanced capability streamlines laboratory workflow and enhances data integrity.

Robust Construction and Safety Features

Manufactured from industrial-grade stainless steel and powder-coated mild steel, the apparatus is designed for heavy-duty usage in laboratories. Automatic stop at maximum penetration and overload protection keep operators and specimens safe, while electronic calibration maintains measurement reliability even during intensive daily usage.

Flexible Software Interface and Multi-Specimen Testing

With compatibility across major Windows operating systems, the user-friendly software enables programmable test speed, data visualization, and control of up to six specimens at once. The system's USB and RS232 interfaces ensure seamless integration, while table-top mounting allows for easy installation in most laboratory spaces.

FAQ's of Automatic Computerized Vicat Recording Apparatus:

Q: How does the Automatic Computerized Vicat Recording Apparatus ensure accuracy in setting time measurement?

A: The apparatus employs a motorized, software-controlled penetration needle and electronic zero calibration, offering high precision measurements with a digital display and auto-recording capability. Accuracy is maintained at 0.01 mm with a fast response time of less than one second.

Q: What materials and specimen sizes can be tested using this device?

A: This equipment is specifically designed for cement, gypsum, and related materials. It accommodates up to six specimens simultaneously, with each specimen measuring 40 mm in diameter and 60 mm in height.

Q: When should calibration be performed and how is it accomplished?

A: Calibration is recommended before starting a series of tests or after any maintenance. The apparatus supports electronic zero calibration, making it a quick, straightforward process via the software interface without manual adjustments.

Q: Where is the best environment to install and operate the Vicat Recording Apparatus?

A: The apparatus functions optimally in laboratory settings with ambient conditions of 15C to 45C and up to 85% relative humidity. Choose a stable table-top location to make use of its robust, industrial-grade construction.

Q: What is the process for exporting and analyzing test results?

A: After completing a test, results are automatically stored in the system's memory. Users can print directly from the device or export data to spreadsheets for further analysis through the compatible Windows software suite provided.

Q: How does the safety interlock and overload protection enhance laboratory safety?

A: Automatic stop at maximum penetration and built-in overload protection prevent equipment damage and ensure operator safety. These features work autonomously, requiring no user intervention during test operation.

Q: What are the main benefits of PC control and automatic data logging in this apparatus?

A: PC control allows easy programming, test management, and direct graphical visualization of results. Automatic data logging minimizes manual data entry errors, streamlining workflow and supporting comprehensive, traceable quality records for laboratory and quality control operations.
